MM32F0130

  • Overview
  • Document
  • Tools & Software
  • Target Application
  • Selection
  • Product Information

Product Description

This device is a 32-bit microcontroller based on the high-performance Arm® Cortex®-M0 core, operating at a frequency of up to 72MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.

- 64KB Flash, 16KB RAM

- One 12-bit ADC and two comparators

- One 16-bit general-purpose timer, one 32-bit general-purpose timer, three 16-bit basic timers and one 16-bit advanced timer

- Two I2C interfaces, two SPI interfaces and two UART interfaces

- One USB interface

- One CAN interface

- Working voltage: 2.0V~5.5V

- Working temperature range (ambient temperature): -40 to +85 industrial type and -40 to +105 extendable industrial type (V is the suffix)

- Multiple sets of power-saving modes make possible the design of low-power applications.

- Provide five package types: LQFP64, LQFP48, LQFP32, QFN32 and QFN28


It is suitable for a wide range of applications:

- Smart lock main control

- Home appliance control

- Small-size color screen display

- Height-adjustable desk

- Power tool

- Stage lighting

- Card-reader

Product Features

Related Videos

    No Details

Data Sheet

  • MM32F0130 Datasheet (Chinese)
    Chinese 2.2 PDF 2.66MB 2022.01.11

    Description: Supports MM32F0130 series, provide detailed specifications, pin definition, electrical characteristics and packaging information.

  • MM32F0130 Datasheet (English)
    English 2.2 PDF 2.55MB 2022.01.11

    Description: Supports MM32F0130 series, provide detailed specifications, pin definition, electrical characteristics and packaging information.

User Manual

  • MM32F0130 User Manual (Chinese)
    Chinese 1.03 PDF 20.35MB 2022.01.10

    Description: Supports MM32F0130 series, providing a complete system architecture, memory and all peripheral details and register descriptions.

  • MM32F0130 User Manual (English)
    English 1.00 PDF 29.07MB 2021.10.15

    Description: Supports MM32F0130 series, providing a complete system architecture, memory and all peripheral details and register descriptions.

Errata Sheet

  • MM32F0130 Errata Sheet (Chinese)
    Chinese 1.1 PDF 242.33KB 2021.10.25

    Description: Supports the MM32F0130 series, list the known issues and provide recommended solutions.

  • MM32F0130 Errata Sheet (English)
    English 1.1 PDF 151.99KB 2021.10.25

    Description: Supports the MM32F0130 series, list the known issues and provide recommended solutions.

Application Note

Lib Samples

  • MM32F0130 Lib Samples
    English 1.03 ZIP 3.76MB 2020.11.10

    Description: Supports MM32F0130, compatible with Cortex-M microcontroller software interface standard (CMSIS), supports MM32 standard library functions, and also provides examples of library function versions such as GPIO and SYSTICK configuration.

Recommended Tools

  • eMiniBoard (MM32F0133C7P)

    Arm Cortex-M0 core

    On-board MM32F0133C7P (LQFP64)

    On-board MM32-Link and CDC virtual comp port

    Arduino interface (UART, I2C and SPI)

    Extended UART, CAN and Micro-USB interfaces

    BEEP

  • MM32-LINK Emulator

    MM32-LINK is an integrated development tool for emulator and programmer

    Support Win 10, Win 7 and Windows XP operating systems, no driver installation is required under Win10 environment

    Support the whole series of MCU code programming of MM32 Cortex-M to automatically match the targeted chip

    Support online ICP SWD programming

    Support online ICP automatic programming machine interface

    Support offline ICP and APM automatic programming machine interface

    In online/offline ICP/APM programming mode, the programming time for 128KB is less than 3 seconds, and for 16KB is less than 0.5 seconds

    Micro USB high-speed communication interface provides power supply

    Programming adapter optionsICP-Adapter, ISP-Adapter and APM-Adapter

  • MM32-LINK Programmer

    Online ICP programming and APM automatic programming machine programming

    Offline ICP manual/automatic programming and offline APM automatic programming machine programming

    Provide traceability service of the programming information

    Adopt AES256 encryption method and support remotely authorized programming operations

    With high-speed programming algorithm, the online programming time for 128KB Flash is only 2.2~3.0 seconds

    Programming adapter optionsICP-Adapter, ISP-Adapter and APM-Adapter

  • MM32-DAP

    Support CMSIS-DAP protocol for programming, downloading and debugging of MM32 MCU

    Fast speed, stable firmware as well as open-source software and hardware

    Support single-step debugging

    Support the drag and drop function of virtual com port and U disk as well as the upgrade of U disk firmware

    Driver-free installation, plug and play

    Applicable to all versions of Windows and Linux operating systems

  • MM32-LCD cloud programmer

    3.2 inch TFT color screen offline programmer

    Support one-to-multiple burning

    Support the update of remote code data

    Support up to 200 mirrors and the setting of burning number

    1G space is reserved as U disk for users to use

    Automatic programming unction supports automatic IC detection and automatic startup and stop

    Support the encryption of chip’s UID and the import and export of algorithm

Recommended Software

  • IAR pack

    When using IAR integrated development environment to develop MM32 microcontroller, you need to install this support package, so that you can select MM32 chip model, debug and download in IAR.
  • KEIL pack

    When using KEIL integrated development environment to develop MM32 microcontroller, you need to install this support package, so that you can select MM32 chip model, debug and download in KEIL.
See More

Target Application

  • Gaming keyboard

    Gaming keyboard is exclusively used for e-sports. Compared with the ordinary keyboards, gaming keyboards not only support complex lighting effects, but also ask for high performance and high respon...

    Learn More
  • Power plug

    Power plug, also called WIFI socket, owns an extension of functions based on the ordinary socket, such as lighting protection, short circuit prevention, overload prevention, anti-creep. With smart ...

    Learn More
  • Device tag

    The Electronic Shelf Label System is an electronic display device that can be placed on the shelf and can replace traditional paper price tags. Each electronic shelf label is connected to the compu...

    Learn More

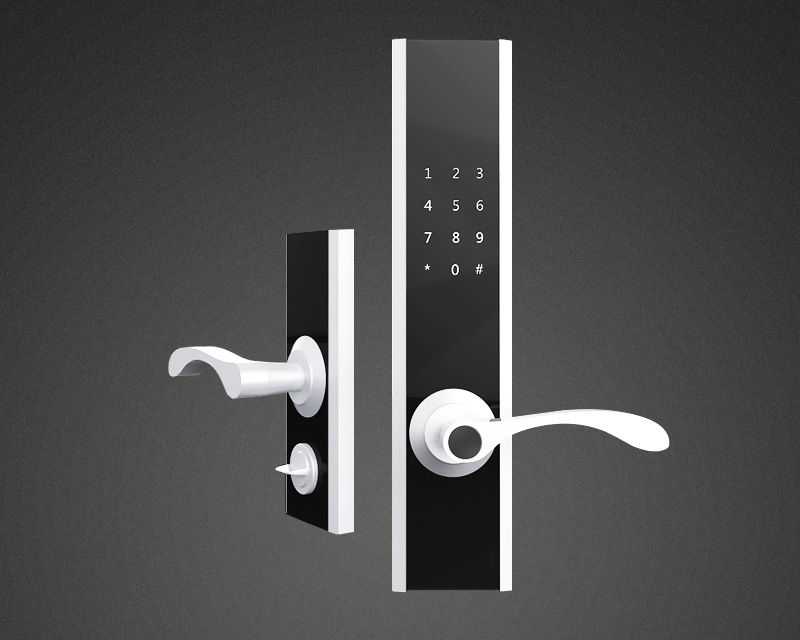

  • E-lock

    E-lock, unlike the locks that have been improved on the basis of the traditional mechanical locks, refers to those that are more intelligent and convenient in terms of user safety, recognition, and...

    Learn More
  • OBD

    OBD (On-Board Diagnostics) is a system that monitors the running state of vehicles and sends feedback of abnormalities in time. It mainly monitors the engine status and exhaust conditions of the ...

    Learn More

Selection

Buy

Part No.

Core

Max Speed (MHz)

Flash (KB)

RAM (KB)

I/O#

Advanced TMR

GP TMR

UART

I²C

SPI

USB 2.0 FS

CAN 2.0B

Ethernet

ADC (1Msps, 12bit)

ADC (3Msps, 12bit)

Pin Counts

Package

Package Size

Operation Temp

样片申请
Agent Channel Link
MM32F0131C3N
M0
72
64
16
23
1
5
2
1
1
-
-
-
10ch
-
28
QFN
4x4
-40~85C
样片申请
Agent Channel Link
MM32F0131C4P
M0
72
64
16
25
1
5
2
1
1
-
-
-
10ch
-
32
LQFP
7x7
-40~85C
样片申请
Agent Channel Link
MM32F0131C6P
M0
72
64
16
39
1
5
2
1
2
-
-
-
10ch
-
48
LQFP
7x7
-40~85C
样片申请
Agent Channel Link
MM32F0131C7P
M0
72
64
16
56
1
5
2
1
2
-
-
-
10ch
-
64
LQFP
10x10
-40~85C
样片申请
Agent Channel Link
MM32F0132C4P
M0
72
64
16
25
1
5
2
1
1
D
-
-
10ch
-
32
LQFP
7x7
-40~85C
样片申请
Agent Channel Link
MM32F0132C6P
M0
72
64
16
39
1
5
2
1
2
D
-
-
10ch
-
48
LQFP
7x7
-40~85C
样片申请
Agent Channel Link
MM32F0132C7P
M0
72
64
16
56
1
5
2
1
2
D
-
-
10ch
-
64
LQFP
10x10
-40~85C
样片申请
Agent Channel Link
MM32F0133C4P
M0
72
64
16
25
1
5
2
1
1
D
1
-
10ch
-
32
LQFP
7x7
-40~85C
样片申请
Agent Channel Link
MM32F0133C6P
M0
72
64
16
39
1
5
2
1
2
D
1
-
10ch
-
48
LQFP
7x7
-40~85C
样片申请
Agent Channel Link
MM32F0133C7P
M0
72
64
16
56
1
5
2
1
2
D
1
-
10ch
-
64
LQFP
10x10
-40~85C
样片申请
Agent Channel Link
MM32F0131C4Q
M0
72
64
16
27
1
5
2
1
1
-
-
-
10ch
-
32
QFN
5x5
-40~85C
样片申请
Agent Channel Link
MM32F0132C4Q
M0
72
64
16
27
1
5
2
1
1
D
-
-
10ch
-
32
QFN
5x5
-40~85C
样片申请
Agent Channel Link
MM32F0133C4Q
M0
72
64
16
27
1
5
2
1
1
D
1
-
10ch
-
32
QFN
5x5
-40~85C
